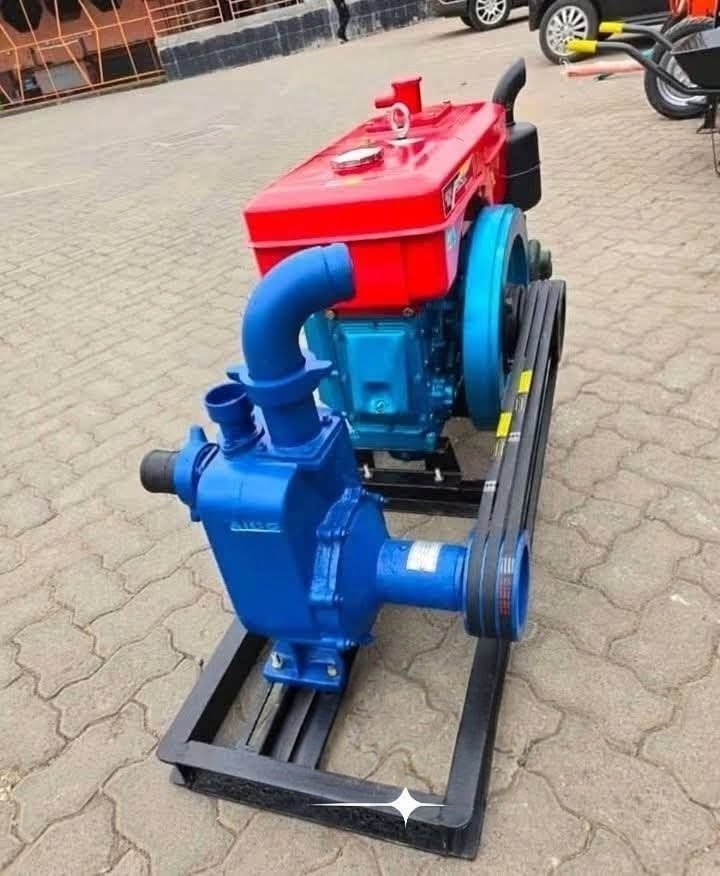

Diesel-powered self-priming centrifugal water pump mounted on a steel skid frame.
Pump Type: Self-priming centrifugal water pump
Power Source: Single-cylinder diesel engine
Engine Power: Approximately 8–12 HP
Inlet/Outlet Size: 3 inches (80 mm)
Maximum Flow Rate: 800–1,200 litres/minute
Maximum Head (Lift): 25–30 metres
Maximum Suction Lift: Up to 8 metres
Pump Body Material: Cast iron
Impeller Material: Cast iron
Engine Cooling System: Air-cooled
Starting System: Manual recoil start
Fuel Type: Diesel
Fuel Tank Capacity: 3.5–6 litres
Operating Speed: Around 3000–3600 RPM
Mounting: Heavy-duty steel skid frame with belt drive transmission
Applications: Irrigation, water transfer, drainage, construction sites, fish ponds, and farm water supply
