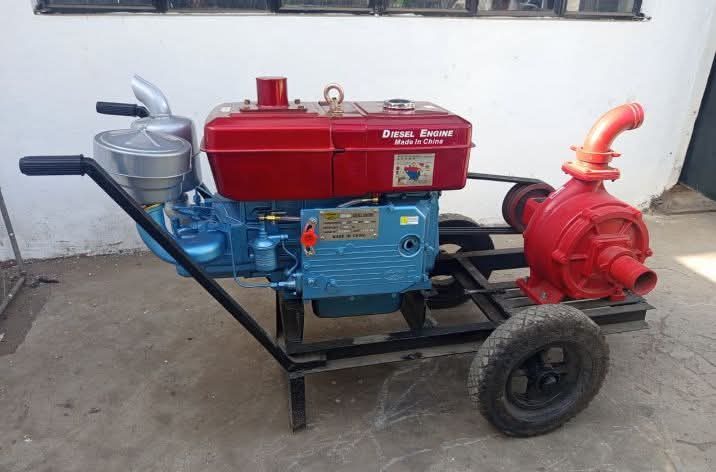

Diesel engine water pump set mounted on a trolley, commonly used for irrigation, dewatering, water transfer, and construction applications.
Typical Specifications
Engine Type: Single-cylinder, 4-stroke diesel engine
Power Output: 8–12 HP
Cooling System: Water-cooled
Starting System: Hand crank or recoil start
Fuel Tank Capacity: 5–12.5 litres
Pump Type: Centrifugal water pump
Suction/Discharge Size: 3"–4" (75–100 mm)
Maximum Flow Rate: 24–60 m³/hour (400–1000 L/min)
Maximum Head: 15–30 metres
Maximum Suction Lift: 7–8 metres
Speed: 1500–3600 RPM
Mounting: Heavy-duty steel trolley with pneumatic wheels for easy transport
Applications: Farm irrigation, drainage, water supply, pond pumping, construction site dewatering, and emergency water transfer.
Features
Fuel-efficient diesel operation
Portable trolley-mounted design
High water discharge capacity
Suitable for continuous field use
Rugged cast-iron pump construction
